SPRING-OPEN TTP

It is important for the switch and the controller to have the same (abstract) view of the switch-forwarding pipeline. This view is essentially a Table-Typed-Pipeline (TTP), the framework for which is being developed by the Forwarding Abstractions WG at the ONF. The abstract pipeline used for Segment Routing application is illustrated below, and ‘implicitly’ understood by the switch and controller instances.  It is intended that the SPRING-OPEN pipeline, while being table-typed, is still generic enough to be implemented by several different vendor ASICs, on different switch platforms. Under-the-hood, vendors can choose different implementation-specific ways to create and maintain the SPRING-OPEN hardware abstraction.  NOTE: Table IDs depicted in the picture may vary based on the specific switch implementations.





Highlights of the pipeline shown in above figure are as follows:

For more details see the latest version of the SPRING-OPEN Hardware Abstraction.

Software Modules

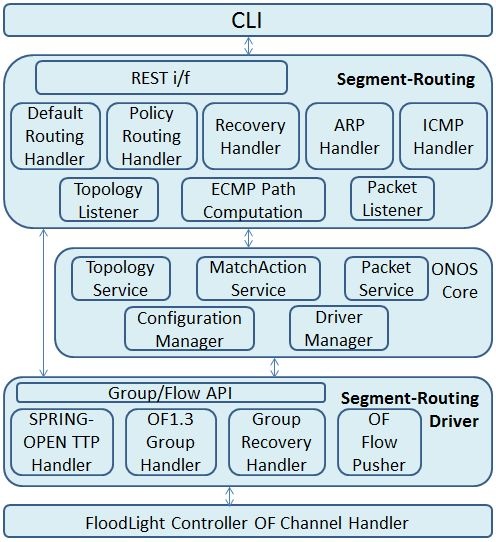

The following figure illustrates the Segment Routing application components, and the relationship among those components



The boxes with bold text represents Segment Routing application modules while rest of the components represent ONOS modules that segment routing application depends on. Segment Routing application exposes two external interfaces: REST and CLI.

Configuration Manager

A Network Config Manager provides network configuration service and filtering service

Segment Routing Application

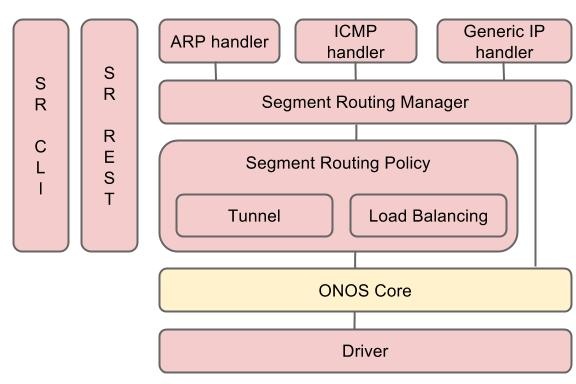

The following figure describes the architecture of the segment routing application.



Segment Routing Driver

As part of Segment Routing application, a driver manager framework is introduced to ONOS core layer to accommodate OF 1.3 switches with different pipelines (TTPs), while still working with OF 1.0 switches as illustrated in below figure. This framework can be extended to customize for a specific switch pipeline, or other attributes unique to a switch platform.

Segment Routing driver provides the following functionality:

OF 1.3 Group Handler

In order to reduce the latencies during the Segment Routing flow creation, the Segment Routing driver at startup pre-populates the OF 1.3 groups in all the Segment Routers for which this ONOS instance is performing MASTER role. There are two types of groups that Segment Routing driver creates in the switches:

For example, consider a segment routing topology (R0 <===> R1, R2, R3 <===> R4) where router (R0) connected to 3 neighbors (R1, R2,and R3) which inturn connected to neighbor R4. R0 and R4 are configured as edge segment router whereas R1, R2 and R3 are only transit/backbone routers. The segment Ids for those routers are 100, 101, 102, 103 and 104 in that order.



Group Recovery Handler

This component of Segement Routing driver handles network element failures and ONOS controller failure.

OF Message Pusher

This component of Segment Routing driver builds Open Flow protocol messages from the provided MatchActionOperationEntry objects from higher layers and sends down to network elements using Floodlight controller's OF Channel Handler.



Driver API

The Segment Routing driver provides following APIs to higher layers:
